nwHacks 2017 Tech Stack

7 Minutes 1400 Words

With nwHacks 2017 coming up this weekend I figured it would be a good time to do a writeup of the tech stack and all the different components that are used to make the hackathon a success. This covers all of the different components of the stack and what technologies were used.

Main Website

The homepage for nwHacks. Source Code

The site is written in Polymer and hosted on GitHub with CloudFlare in front of it for secure connections. This makes it super reliable since it’s all static content that can be served. We’re using polymer-cli to generate bundled pages and dynamically load them using page.js. Using webcomponents like this makes it super easy to manage and highly efficient on load, since the user only has to load what’s needed.

Here’s a stripped down version of our routing logic. As you can see loadPage is super simple to understand and does all the dynamic page loading.

Polymer({
  is: "main-app",

  /* ... more content here ... */

  ready: function() {
    page('/register', function() { self.route = 'register-closed'; });
    page('/sponsors', function() { self.route = 'sponsor-page'; });
    page('/rsvp/:id/:token/:status', function(e) {
      self.route = 'rsvp-page';
      self.params = e.params;
    });
    page('/', function() { self.route = 'index-page'; });
    page();
  },

  loadPage: function(route) {
    const pageURL = 'components/' + route + '/' + route + '.html';
    this.importHref(pageURL, null, this.handle404, true);
  }
});

Schedule

nwHacks 2017 Schedule. Source Code

Similar to last year, the schedule is a reusable element that fetches directly from Google Calendar. This makes it very easy to add and change events. Hackers can directly add this calendar to their own as well, making it super easy to stay on top of what’s happening at the hackathon.

Registration

The registration form. Source Code

This year, we decided to get rid of the Django app that was previously powering the site. Having a static site greatly simplified deployment and a whole host of other benefits. The one issue with that is we still need somewhere to store data such as registration information. We decided to use Firebase as it fit our use case very nicely.

On submit, we upload the resume to Google Storage, and then save a new registration object into Firebase.

Selecting Hackers

The admin interface. Source Code

Polymer and more specifically polymerfire makes it super easy to interact with Firebase. Here’s a simple example of how we render all of the registrations.

<iron-list id="list" items="{{registrations}}" as="hacker">
  <template>
    <paper-card heading="[[title(hacker)]]">
      <!-- display the rest of the content -->
    </paper-card>
  </template>
</iron-list>

<firebase-query path="/registrations" data="{{registrations}}">
</firebase-query>

In practice, there’s an intermediate step between displaying and fetching the registrations since we need to filter and index it for search. We use lunr.js in numerous places for full text search. It’s super fast and we get access instantly to what we’re looking for.

Any changes that happen on one screen are immediately viewable on others as Firebase syncs the data between multiple browsers automatically.

Statistics

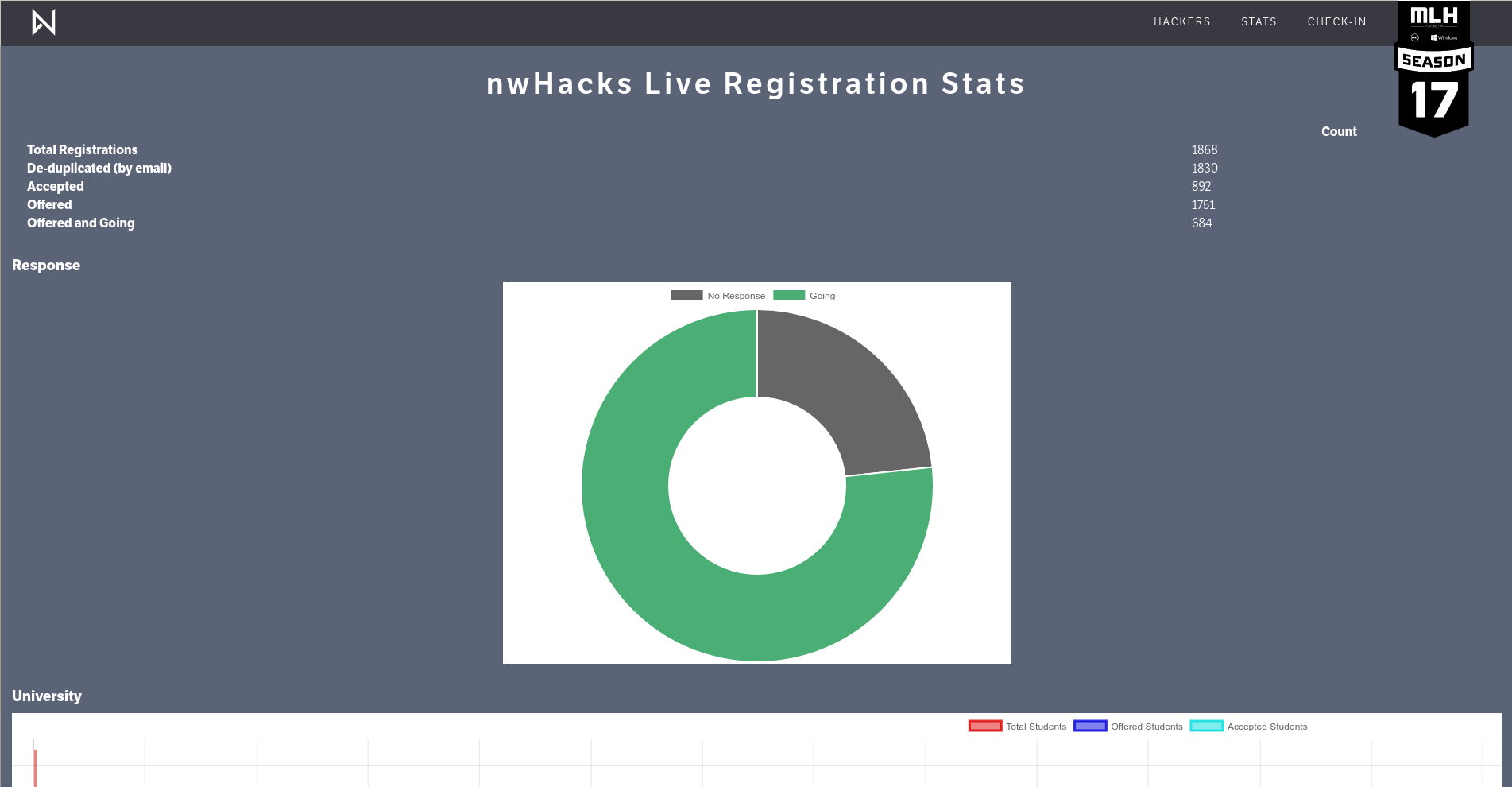

Built in statistics view. Source Code

We’ve got an integrated stats page that lets us view statistics about the hackathon in realtime. It’s a really satisfying feeling watching the counters tick upwards after opening registration. This page also shows a bunch of aggregate stats such as distributions of T-Shirt sizes and dietary restrictions.

Check-In

The check-in interface. Source Code

This year I built a highly optimized page for check-in. Previously we just used the selection page above, but that was a lot more complicated than the current system. You can now do everything through the keyboard and lookup someone in seconds via full text search. It also syncs between browsers immediately so there’s never any confusion or page reloads required.

The old django system didn’t sync between browsers leading to some confusion during check-in last year.

The new system also makes it very explicit what needs to happen for each person. A “standard” person has no highlights as seen above. Someone who is under 19, or on the wait list has a bright orange bar indicating that some extra action needs to be taken. Someone who was rejected but showed up anyways appears as red indicating they shouldn’t be allowed in.

Email

The nwhacks.io Mailgun dashboard.

This year we used Mailgun for all of our email. They have a Go library which made it simple to export data from Firebase and create new mailing lists for every batch of emails that needed to be sent out. As you can see above, we send ended up sending a lot of emails to the applicants and accepted hackers.

They also gave us the benefit of being able to add unsubscribe links easily to hopefully minimize the amount our email is listed as spam.

All our emails are written in Markdown before being compiled to HTML/text, wrapped in our email template and being sent to Mailgun.

---
subject: "WE CHOOSE YOU!"
---

Hey %recipient_fname%,

CONGRATULATIONS, YOU’RE IN! We loved your application, and we’d love even more for you to join us at UBC over the weekend of March 18-19!

...

## Please let us know whether you’re coming within the next 7 days [here](https://www.nwhacks.io/rsvp/%recipient.id%#begin).

...

Your friends,

The nwHacks Team

The mailing list variables and template language made it super simple to send out things like RSVPs that required a custom URL for each hacker. We just added their Firebase registration ID into the mailing list entry.

Unfortunately, the code for sending emails and managing the mailing lists is closed source currently. In interests of time, I hard coded the credentials last year and haven’t gotten around to scrubbing the Git history.

Hackathon Communication

Slack

This is what attendees saw when they joined the Slack team.

We setup a Slack team for all attendees and sponsors to use day of for communication and announcements. Super easy to setup by exporting data directly from our admin interface and importing it into Slack.

Social Media Cross Posting

We also setup a couple of links to automatically post from our Twitter page to our Facebook page, as well as the Attendees Facebook group and Slack. For Facebook, we used Zapier to cross-post the tweets. Zapier only checks every 15 minutes which makes it a bit less than ideal, but it’s very quick to setup.

Judging System

The pairwise project judging view. Source Code

For judging we used a modified version of gavel themed to match the rest of our site. There’s also customizations to display where hackers are, and which sponsor prizes they’re applying for. This also has full text search powered by lunr.js.

The list of all projects (with test data).

We setup two instances of the judging application. One for the official judges, and then one for a popular vote which anyone can use.

Project Submissions

Our Devpost page.

We used Devpost once again despite my reservations against it. I briefly considered creating my own submission tool, but decided not to due to time constraints. They don’t have any real API so last year I wrote a scraper to fetch all of the projects off it and import them into the judging system. This year, we’re using the CSV dumps and copy pasting it.

Map

A view of LSC where nwHacks 2017 was held. Source Code

We’re using the same campus map that I wrote last year. This tiles floor plans on top of Google Maps and provides full text search for the places specified on the map. The locations on the schedule link to the map allowing for hackers to quickly find where they need to go. This is essential due to the size of the campus, and the poor existing UBC maps.

This is all written in Polymer with Go as the backend. It also uses groupcache to provided a highly efficient distributed caching system for map tiles and intermediates which are very expensive to resize and process.

Final Thoughts

Overall, I’m super happy with how our tech stack worked out. A lot of the decisions were made based of how reliable the service is and how easy it is to maintain. Most of the stack is super reliable and doesn’t cost us anything. The day of systems like the judging app, I’m a bit less confident in (especially considering I didn’t write them). However, they only need to be up for about 24 hours and are running on a cheap VM hosted by Vultr.
