Monocular Depth Improvements - DIY Self Driving Part 2

8 Minutes 1700 Words

This is a follow up to DIY Self Driving.

In the past few months I’ve been iterating on my previous work on creating self driving models. The main goals were initially:

  1. train depth models for each camera
  2. generate joint point clouds from the multiple cameras
  3. use the fused outputs to create a high quality reconstruction that I can use to label things like lane lines

This post lists all the various problems I ran into and some of the mitigations I applied for those issues.

Off-axis Motion

For the side cameras the easiest thing to do is to apply the same monodepth2 techniques that I had used for the main camera and train a model on them. I ran into a lot of issues since the side cameras especially at higher speed can have very large differences and there’s few good features between the two frames. The off-axis motion resulted in highly inaccurate pose predictions which resulted in inaccurate depth.

The solution I settled on was to use the main camera for the pose network and then only use the side cameras for the per camera depth models. This allowed for a shared pose network across all camera angles and resulted in much better depth.

Highway Speeds

High speeds increase motion blur and increase the distance between frames which make it harder for the model to learn since blur obstructs features (i.e. the road surface becomes entirely uniform) and the larger distances makes close objects move much further requiring highly precise depth/pose estimates to align correctly.

For highways especially they tend to be very uniform and the vehicles are moving in the same direction as the road lines so there’s not much difference between frames.

Road surface is inaccurate due to uniformity.

This speed issue is also present at the edges of the main camera in the previous post.

I was able to mitigate this issue by only training on captures below 50 mph. This worked to avoid that issue but skipping training data is much less than ideal.

Image Space Depth Improvements

To maximize the amount of context for the images I tried feeding the full images into the depth model and applying the loss on the full 1280x960 frames instead of just the 640x480 frames. This helped a bit with the fine details but the distance accuracies weren’t significantly improved.

Fine details such as the post are more accurate but speed corruption still occurs.

For the higher resolution model I based my model off of HR-Depth which seems to be the SoTA for monocular depth.

HR-Depth is better than monodepth2 especially for higher resolution images but it’s not hugely better.


I switched to using a static mask instead of the automatic masking that was used in monodepth2. A static mask seems to perform better for the sides of the vehicle which are shiny and avoids accidentally masking out repeating patterns.

Static mask for one of the repeater cameras.

Moving objects such as cars can be very problematic since standard Structure From Motion training assumes all objects are static.

To try and handle moving objects such as cars I tried applying a semantic layer to automatically mask out all moving objects to try and get the model to not result in infinite/zero distances for cars. While this reduced the error it still didn’t return accurate results.

Combination of semantic and static masks for a pillar camera.

Radar Based Masking

To enable the model to learn some car distances I tried using the radar data as a label but since the radar data is so noisy that didn’t work out well at all.

Overhead traffic lights causing erroneous radar returns.

The heights for the radar returns are often inaccurate which makes fusing with image data hard.

A slightly better optimization was to use it as a filter on top of the predicted bounding boxes to only train the model on stopped cars.

Top to bottom: The raw semantic layer bounding detections, the radar filtered detections, and the resulting mask.

Car depths are more reasonable but have some strange artifacting and aren’t very accruate.

Multicamera Fusion

To actually use the depth maps from the side cameras I needed to merge them together. I extended my existing 3D renderer to support rendering multiple cameras as well as the depth maps.

Projecting all of the cameras in one scene.

Alignment is alright for mid range depths (~10-20m) when the car is driving straight.

I switched the renderer to using meshes instead of point clouds and used the semantic mask to mask out cars which add extra noise to the render.

A two lane road. Alignment and accuracy is quite good for this.

With some fine-tuning of the render the fused output is quite good. Edges of objects aren’t sharp resulting in jagged edges and noise.

As the points get further from the vehicle the accuracy gets much worse. The edges of the images have less context so end up with inaccuracies.

These renders are a pretty reasonable but a bit cherrypicked since the car is moving in a straight line, it’s well lit and I’m significantly cropping the edges of the images to avoid distortions near the edges. The results are much worse when the car is turning or at night. Many of the rendering parameters (i.e. frame spacing, cropping, distance thresholds) are situational as well.

The noise from edges of objects was a notable issue in my initial voxel representation training set. Getting these renders to be robust requires good localization and a lot of fine tuning to make sure they work in all cases.

For reference here’s the output from colmap. Generating this took two days on my 3090. Fine details seem to be better than my result but uses stupid amount of processing vs the monocular depth models which can run in real time.

Multicamera Consistency

To improve the multi camera consistency in all situations I tried using the cross camera projections from “Full Surround Monodepth from Multiple Cameras” ( This got my camera reprojection code honed in quite accurately since I needed to be able to exactly map from one camera to another.

This seemed like a promising approach since it would allow me to use monocular depth models while still getting cross camera consistency.

Projection from the main camera onto the left pillar camera.

These alignment and projections from one camera to another seem quite accurate at first glance.

Projection from the left repeater camera onto the backup camera.

If you look at the difference between the projected image and the original you’ll notice that it never actually turns black which would indicate perfect alignment. The exposure and vignette patterns of the cameras (i.e. brightness) don’t match up between the cameras unlike the dataset in the original paper. This ended up with blurry depth outputs as it tried to make the brightness match instead of the actual structure.


As part of the multicamera projections I needed to rectify the images. Rectification eliminates the camera lens distortions and ensure that straight lines in reality are straight. The fisheye/backup camera had the largest distortions but there was lens distorions in all of the cameras.

This required having exact camera extrinsics (position, direction) as well as camera intrinsics (fisheye distortion, focal lengths). I was able to calculate the camera distortions by using OpenCV and a printed test pattern.

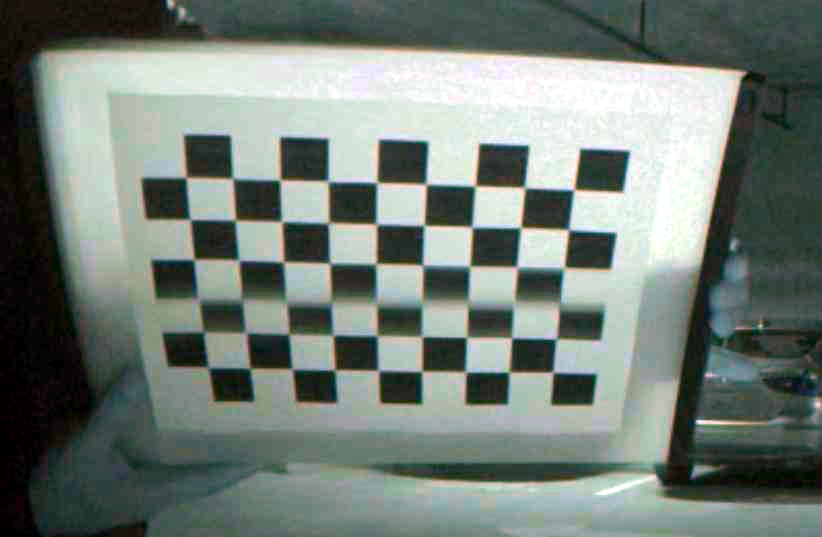

Computing the distortion coefficients using a known test pattern attached to my cutting board.

Increasing Distance Between Frames

One solution to getting more accurate depths at further distances is to increase the distance between the two frames when computing disparity. This would give more movement on pixels that are far away which should result in more accurate numbers.

Unfortunately as you increase distance between frames there’s less common features so it makes it harder for the model to learn nearby depth such as road surfaces. It’s the same problem as with higher speeds.

Enforcing 3D constraints

A lot of the issues with the depth model is because purely image-space losses don’t enforce any real world constraints. This resulted in a lot of weird behaviors such as the ground at high speeds, moving cars or reflective puddles being at infinite distance. This just isn’t physically possible.

Since I had already done all the work to figure out camera extrinsics and how to map them into the real world for the multicamera reprojections I decided to try and enforce a 3D constraint.

I converted each pixel to the XYZ coordinate and then grabbed the height. I added a weak loss on the height to penalize points that were physically impossible (i.e. meters underground). This gave the model a prior on what was realistic vs not so for points on the ground that were previously infinitely far away it forced the model out of the bad local minimum.

Main camera before vs after adding a zloss. Road surface is perfect.

Wet road would normally result in incorrect depths due to the reflections.


Using monocular depth models for full 3D reconstruction is very possible but it requires a lot of work to get the models accurate enough to do multi-camera and multi-frame fusion.

I got pretty good results but they weren’t quite robust enough for me to feel very comfortable labelling the output for lane lines etc. If you had some LIDAR ground truth to do some fine tuning it would help a lot especially for the further distances. For camera fusion, getting localization accurate is highly important for these and I haven’t spent enough time fine tuning it/don’t have enough time. Localization is very finicky and isn’t as much fun as modeling.

Tesla has LIDAR data and engineers that can spend significant time fine-tuning these approaches but for my use cases it’s a big time sink to get them into a robust and polished state.

For real world applications handling these in 3D via geometric constraints seems to be the way to go and caused me to pivot to a new approach which is described in the next post.
